Frame mixer

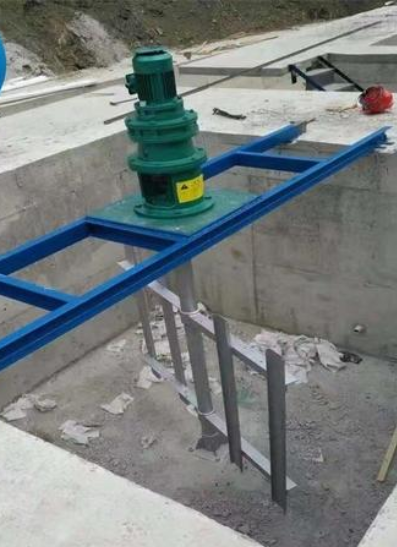

The frame mixer, also known as the vertical shaft type mechanical reaction mixer, is suitable for the reaction stirring of the water plant after the mixing is completed, so that the chemicals can form flocculation in the water body.

Parameter	Pool size(m)		agitator size(mm)			stirring power(KW)
Parameter	length x width	H	D	h.	h1	Ⅰ	Ⅱ	Ⅲ
JF-1.5×2.5	2.2×2.2	3.4	1700	2600	400	0.75	0.37	0.37
JF-1.5×3	3.25×3.25	4.5	2875	3500	3500	0.75	0.37	0.37
JF-1.8×3	3.5×3.5	3.55	3000	2200	550	0.37	0.25	0.18
JF-2×2.5	4.3×4.3	3.4	3800	1200	550	0.75	0.37	0.37
JF-1.5×5.5	4.7×4.7	4	4200	1400	550	0.75	0.37	0.37
